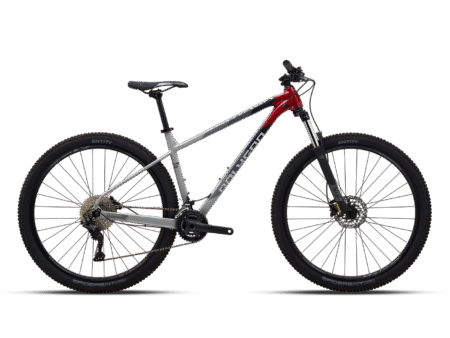

XTRADA 5

XTRADA 5

$ 600,00

ADVENTURE STARTS HERE

Created for chasing endless tracks.
“Riding with Xtrada, feels like running as a wolf,” they said. As an XC bike should be, Xtrada is born to run the game with you. Impeccably versatile, effortlessly fast, and obsessively comfortable. The Xtrada is a true cross country mountain bike with a geometry built for speed and stability coupled with tough, trail-ready components. It is perfect for hitting the local single track or an all-day mountain adventure.
SKU: N/A Categories: , ,

Description

*Specifications, colors, and product availability are subject to change without prior notice.
  • Frameset
    Frameset

    ALX XC TRAIL

    Fork

    SR SUNTOUR XCM-HLO 120mm (27.5″ & 29″) TRAVEL

    Rear Shock

    –

    Frame Color

    GREY BLACK / WHITE BLACK

    Decal Color

    GREY / WHITE

  • Drivetrain
    Shifter

    SHIMANO 10 SPEED TRIGGER

    Crank

    PROWHEEL 32T 170mm

    Cassette

    SHIMANO 10 SPEED

    Rear Derailleur

    SHIMANO 10 SPEED, DIRECT ATTACH

    BB

    SHIMANO 2-PIECE CRANKSET BSA THREADED 73mm

    Chain

    KMC CHAIN

    Pedal

    PP FLAT PEDAL W/ REFLECTOR

  • Cockpit
    Saddle

    POLYGON, STEEL ø 7mm

    Seatpost

    POLYGON XPERT ALLOY, DXL: 27.2 x 350mm, OFFSET: 15mm, SEAT CLAMP: 31.8mm W/ QR

    Handlebar

    POLYGON SPORT ALLOY, W: 760mm, BAR BORE: 31.8mm, RISE/DROP: 12mm, BEND: 6degree

    Handlestem

    POLYGON SPORT ALLOY, EXT: 45mm, BAR BORE: 31.8mm, RISE/DROP: 3degree

    Headset

    ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, ZS 44/28.6 | ZS 56/40

  • Wheel & Tire
    Wheel Set

    ALLOY WHEELS

    Wheel Size

    27.5″ / 29″

    Tire

    PERFORMANCE TIRE 27.5″X2.25″ / 29″X2.25″

    Rim

    ALLOY DOUBLE WALL H:19mm W: 23mm 584 32H FOR TYRE 584-68/622-68

  • Brake
    Brake Lever

    HYDRAULIC DISC LEVER

    Brake Caliper

    HYDRAULIC DISC BRAKES

    Rotor

    160mm

Geometry & Size

MM

  S (27.5″) M (27.5″) L (27.5″) M (29″) L (29″) XL (29”)
Height (cm) 155-165 165-175 175-185 165-175 175-185 185-195
Seat Tube Length (A) 385 425 460 425 460 500
Seat Tube Angle (B) 75 75 75 75 75 75
Effective Seat Tube Angle (C) 75 75 75 75 75 75
Head Tube Length (D) 95 100 105 95 100 105
Head Tube Angle (E) 67 67 67 67 67 67
Effective Top Tube (F) 569 590 612 598 619 640
Bb Height (G) 310 310 310 309 309 309
Bb Offset (H) 45 45 45 65 65 65
Chainstay Length (I) 425 425 425 435 435 435
Wheelbase (J) 1106 1128 1150 1147 1169 1191
Frame Reach (K) 410 430 450 430 450 470
Frame Stack (L) 593.8 5993 603 629.3 633.2 637.8
Standover Height (M) 663 697 726 693 715 751

INCH

  S (27.5″) M (27.5″) L (27.5″) M (29″) L (29″) XL (29”)
Height (cm) 155-165 165-175 175-185 165-175 175-185 185-195
Seat Tube Length (A) 385 425 460 425 460 500
Seat Tube Angle (B) 75 75 75 75 75 75
Effective Seat Tube Angle (C) 75 75 75 75 75 75
Head Tube Length (D) 95 100 105 95 100 105
Head Tube Angle (E) 67 67 67 67 67 67
Effective Top Tube (F) 569 590 612 598 619 640
Bb Height (G) 310 310 310 309 309 309
Bb Offset (H) 45 45 45 65 65 65
Chainstay Length (I) 425 425 425 435 435 435
Wheelbase (J) 1106 1128 1150 1147 1169 1191
Frame Reach (K) 410 430 450 430 450 470
Frame Stack (L) 593.8 5993 603 629.3 633.2 637.8
Standover Height (M) 663 697 726 693 715 751

Additional information

size

L, M, S, XL
color

White Black, Red Grey
