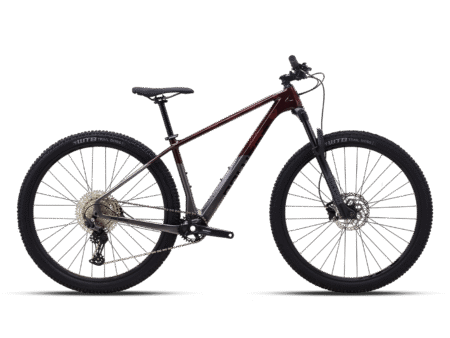

SYNCLINE C3

SYNCLINE C3

$ 1,300,00

SEIZE THE JOURNEY

An adrenaline machine to ride on more trails
Designed as a top performing XC trail machine with modern geometry. Featuring an ultra light and stiff carbon frame designed around 27.5” and 29″ wheels, this bike will keep you rolling on cross country to technical tracks smoothly with style. This is for you, trail seeker. Whether you are looking for fun off-road riding or cross-country enthusiast striving for podiums, get ready to cross every boundary and seize your own journey.
SKU: N/A Categories: , ,

Description

*Specifications, colors, and product availability are subject to change without prior notice.
  • Frameset
    Frameset

    ACX XC PERFORMANCE

    Fork

    ROCKSHOX RECON SILVER RL, 120mm

    Rear Shock

    –

  • Drivetrain
    Shifter

    SHIMANO DEORE SL-M6100-R 12-SPEED TRIGGER

    Crank

    SHIMANO FC-MT510-1 32T 2-PIECE-CRANK

    Cassette

    12 SPEED 11-51T

    Rear Derailleur

    SHIMANO DEORE RD-M6100-SGS DIRECT ATTACH

    BB

    SHIMANO BB-MT500-PA

    Chain

    KMC NEW X-12

    Pedal

    ALLOY CAGE PEDAL W/ REFLECTOR

  • Cockpit
    Saddle

    ENTITY VOID SADDLE

    Seatpost

    ENTITY XPERT, 27.2x350mm

    Handlebar

    ENTITY XPERT, W: 740mm, BB: 31.8mm, R/D: 12mm, B: 9degree

    Handlestem

    INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40

    Headset

    INTEGRATED W/ SEALED BEARING FOR TAPER HEAD TUBE, IS 42/28.6 | IS 52/40

  • Wheel & Tire
    Wheel Set

    ALLOY DOUBLE WALL

    Wheel Size

    27.5 / 29

    Tire

    WTB TRAIL BOSS TIRE, 27.5×2.25 / 29×2.25

    Rim

    584-30 / 622-30 32H FOR TYRE 584 / 622-54/76 TUBELESS READY

    Hub

    F: SHIMANO HB-MT400-B 15x110mm 32H CENTER LOCK / R: SHIMANO FH-MT510-B 12x142mm 32H CENTER LOCK

  • Brake
    Brake Lever

    SHIMANO BL-MT201

    Brake Caliper

    SHIMANO BR-MT201

    Rotor

    SHIMANO SM-RT10 F:180mm R:160MM CENTERL LOCK

Geometry & Size

MM

  S (27.5”) M (27.5”) M (29”) L (29”) XL (29”)
Height (cm) 155-165 165-175 165-175 175-185 185-195
Seat Tube Length (A) 380 420 420 460 500
Seat Tube Angle (B) 73 73 73 73 73
Effective Seat Tube Angle (C) 75.3 75.3 75.3 75.3 75.3
Head Tube Length (D) 100 120 100 120 140
Head Tube Angle (E) 67 67 67 67 67
Effective Top Tube (F) 569 594.6 597.7 621 649.15
Bb Height (G) 308.5 308.5 307.5 307.5 307.5
Bb Offset (H) 45 45 64 65 65
Chainstay Length (I) 425 425 435 435 435
Wheelbase (J) 1106.94 1134.8 1149.5 1176.9 1204.76
Frame Reach (K) 410 430 430 450 470
Frame Stack (L) 596.6 615 633.2 651.6 670
Standover Height (M) 690.9 729.2 730.8 763.7 779.2

INCH

  S (27.5”) M (27.5”) M (29”) L (29”) XL (29”)
Height (cm) 155-165 165-175 165-175 175-185 185-195
Seat Tube Length (A) 14.96 16.54 16.54 18.11 19.69
Seat Tube Angle (B) 2.87 2.87 2.87 2.87 2.87
Effective Seat Tube Angle (C) 2.96 2.96 2.96 2.96 2.96
Head Tube Length (D) 3.94 4.72 3.94 4.72 5.51
Head Tube Angle (E) 2.64 2.64 2.64 2.64 2.64
Effective Top Tube (F) 22.4 23.41 23.53 24.45 25.56
Bb Height (G) 12.15 12.15 12.11 12.11 12.11
Bb Offset (H) 1.77 1.77 2.52 2.56 2.56
Chainstay Length (I) 16.73 16.73 17.13 17.13 17.13
Wheelbase (J) 43.58 44.68 45.26 46.33 47.43
Frame Reach (K) 16.14 16.93 16.93 17.72 18.5
Frame Stack (L) 23.49 24.21 24.93 25.65 26.38
Standover Height (M) 27.2 28.71 28.77 30.07

Additional information

size

L, M, S, XL
color

Brown Charcoal
