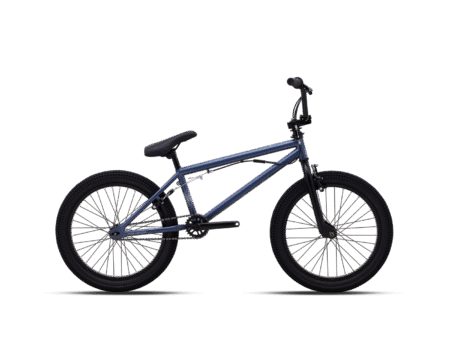

RUDGE 3
Sale!

RUDGE 3

Original price was: $ 400,00.Current price is: $ 300,00.

GLORY IN EVERY MOVE

Designed for carving your local skate bowl and boosting out of quarter pipes
At Polygon, we believe every ride is a journey of self-expression and creativity. The Polygon Rudge BMX is engineered to deliver just that—grabbing the crossbar and spinning the handlebars, balancing in various positions, and pulling off a backward flip in midair. Its light and responsive frame gives you the control to showcase your style and turn heads in the park. Whether you’re dialing in tricks, ripping through your local spots, or taking on flatland, the Rudge is your ticket to a ride that makes a bold statement.
SKU: N/A Categories: ,

Description

*Specifications, colors, and product availability are subject to change without prior notice.
  • Frameset
    Frameset

    HIGH-TENSILE STEEL FREESTYLE FRAME

    Rear Shock

    RIGID FULL STEEL, STRAIGHT 1-1/8″ THREADLESS

  • Drivetrain
    Crank

    ALLOY 25T FOR 19mm AXLE

    Cassette

    FREEWHEEL 14T

    BB

    MID TYPE SEALED BEARING W/ SPLINE 8Tx19mmX150mm AXLE & ADAPTER 23.8mm TO 19mm

    Chain

    KMC C-410

    Pedal

    PP PEDALS W/PP CAGE & REFLECTOR

  • Cockpit
    Saddle

    POLYGON SADDLE, STEEL ø7mm W/ CLAMP

    Seatpost

    STEEL, 25.4 x 200mm

    Handlebar

    STEEL, W: 670mm, BB: 22.2mm, R/D: 170mm

    Handlestem

    ALLOY, EXT: 50mm, BB: 22.2mm, R/D: 0degree

    Headset

    FEIMIN FP-H801S EXTERNAL CUP THREADLESS, EC 34/28.6 | EC 34/30

  • Wheel & Tire
    Wheel Set

    ALLOY SINGLE WALL

    Wheel Size

    20″

    Tire

    KENDA KID BLOCK K1040 20″x2.25″ (406-56) AV

    Rim

    F: ALLOY SINGLE WALL AV 406×2, 32H / R: ALLOY SINGLE WALL AV 406×2, 36H

    Hub

    F: ALLOY 3/8x100mmx150mm 32H W/ FLANGE NUT / R: ALLOY 3/8x112mmx170mm 36H W/ WASHER & FLANGE NUT

    Spokes

    F: J-BEND 14G STEEL NDS:188mm DS:188mm NIPPLE:14Gx12mm / R: J-BEND 14G STEEL NDS:186mm DS:186mm NIPPLE:14Gx12mm

  • Brake
    Brake Lever

    ALLOY LEVER

    Brake Caliper

    ALLOY U-BRAKE

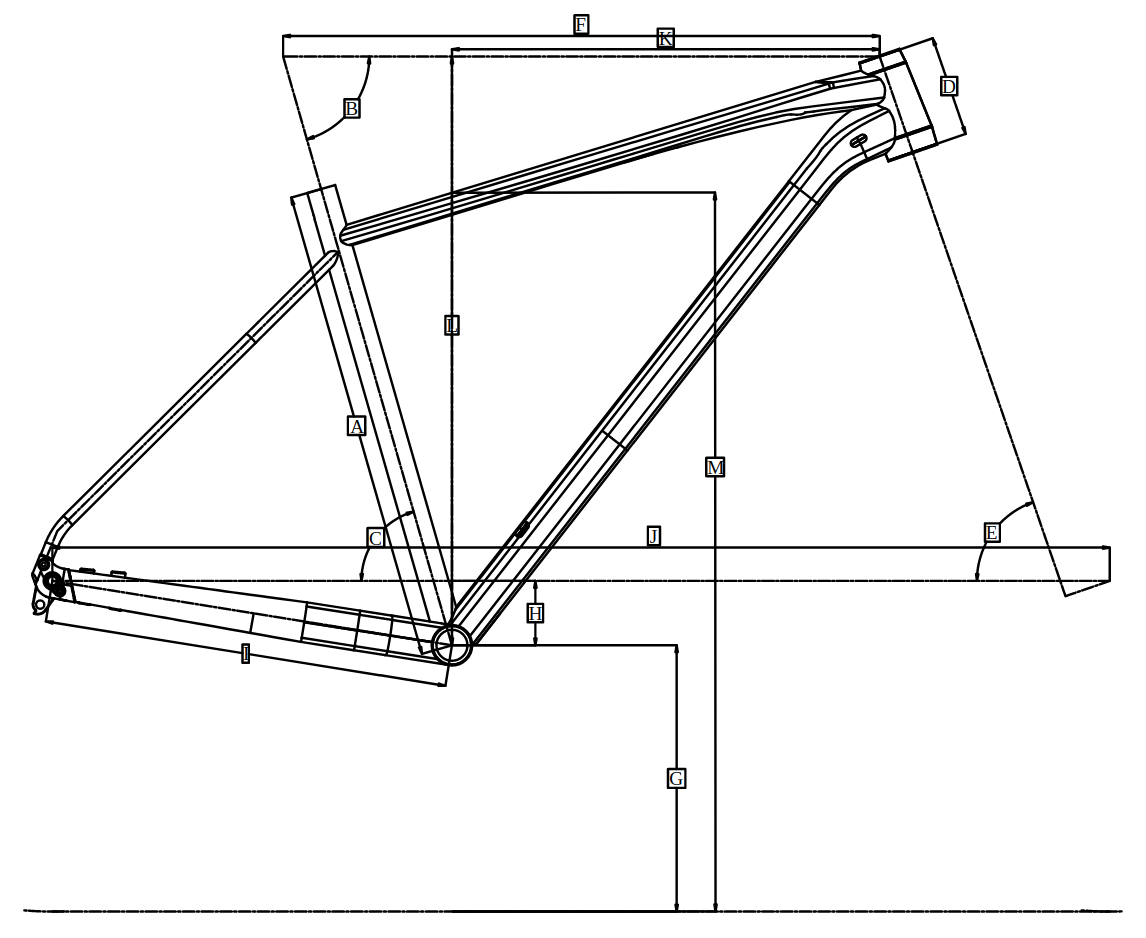

Geometry & Size

MM

  All Size
Height (cm) 140-165
Seat Tube Length (A) 209
Seat Tube Angle (B) 71
Effective Seat Tube Angle (C) 71
Head Tube Length (D) 100
Head Tube Angle (E) 74.5
Effective Top Tube (F) 525
Bb Height (G) 300
Bb Offset (H) 40
Chainstay Length (I) 340
Wheelbase (J) 885
Frame Reach (K) 401
Frame Stack (L) 361
Standover Height (M) 516

INCH

  All Size
Height (cm) 140-165
Seat Tube Length (A) 8.23
Seat Tube Angle (B) 2.8
Effective Seat Tube Angle (C) 2.8
Head Tube Length (D) 3.94
Head Tube Angle (E) 2.93
Effective Top Tube (F) 20.67
Bb Height (G) 11.81
Bb Offset (H) 1.57
Chainstay Length (I) 13.39
Wheelbase (J) 34.84
Frame Reach (K) 15.79
Frame Stack (L) 14.21
Standover Height (M)

Additional information

color

Blue
size

ALL SIZE
