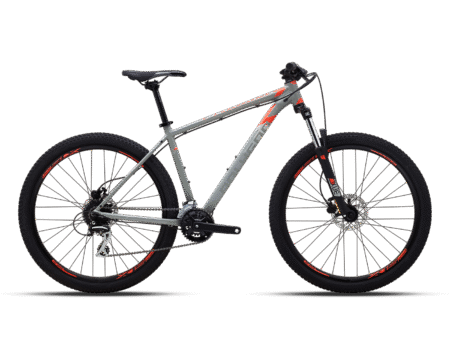

PREMIER 4

PREMIER 4

$ 400,00

DEFINE YOUR MOUNTAINS

Well suited for off-road trails and urban usage
Created for riders who want a versatile mountain bike. Built with a lightweight and durable AL6 frame with modern geometry for a more comfortable leisure ride, the Premier will keep riders enthusiastic about riding for years to come. The Premier series fits you and helps you to define your mountains.
SKU: N/A Categories: ,

Description

*Specifications, colors, and product availability are subject to change without prior notice.
  • Frameset
    Frameset

    ALUTECH XC SPORT FRAME

    Fork

    SUNTOUR XCM 120mm (27.5″) / 100mm (29″) TRAVEL

    Rear Shock

    –

  • Drivetrain
    Shifter

    SHIMANO ALTUS SL-M315, 2×8-SPEED TRIGGER

    Crank

    ALLOY CRANK 36/22T, 170MM

    Cassette

    SHIMANO CS-HG200 12-32T

    Rear Derailleur

    SHIMANO ACERA RD-M3020 DIRECT ATTACH

    BB

    CARTRIDGE BEARING 68x127mm

    Chain

    KMC Z-8.3

    Pedal

    PP PEDALS W/ PP CAGE

  • Cockpit
    Saddle

    ENTITY VOID SADDLE, STEEL ø7mm

    Seatpost

    ALLOY SEATPOST, 27.2x350mm

    Handlebar

    ENTITY SPORT ALLOY, EXT: 740mm, BB: 31.8mm, R/D: 20mm, B: 6degree

    Handlestem

    ENTITY SPORT ALLOY, EXT: 45mm, BB: 31.8mm, R/D: 0degree

    Headset

    ZERO STACK (ZS) THREADLESS, ZS 44/28.6 | 44/30

  • Wheel & Tire
    Wheel Set

    ALLOY DOUBLE WALL

    Wheel Size

    27.5″/29″

    Tire

    DELI 27.5/29″ “x2.25”

    Rim

    –

    Hub

    –

    Spokes

    –

  • Brake
    Brake Lever

    HYDRAULIC DISC BRAKE

    Brake Caliper

    HYDRAULIC DISC BRAKE

    Rotor

    1600mm 6-BOLTS

Geometry & Size

MM

  S M L
Height (cm) 152-165 162-175 172-185
Seat Tube Length (A) 406 456 506
Seat Tube Angle (B) 73 73 73
Effective Seat Tube Angle (C) 73 73 73
Head Tube Length (D) 100 100 105
Head Tube Angle (E) 69 69 69
Effective Top Tube (F) 570 585 605
Bb Height (G) 299 299 299
Bb Offset (H) 47 47 47
Chainstay Length (I) 430 430 430
Wheelbase (J) 1072 1087 1107
Frame Reach (K) 383.5 398.5 417
Frame Stack (L) 610 610 615
Standover Height (M) 713 753 793

INCH

  S M L
Height (cm) 152-165 162-175 172-185
Seat Tube Length (A) 15.98 17.95 19.92
Seat Tube Angle (B) 2.87 2.87 2.87
Effective Seat Tube Angle (C) 2.87 2.87 2.87
Head Tube Length (D) 3.94 3.94 4.13
Head Tube Angle (E) 2.72 2.72 2.72
Effective Top Tube (F) 22.44 23.03 23.82
Bb Height (G) 11.77 11.77 11.77
Bb Offset (H) 1.85 1.85 1.85
Chainstay Length (I) 16.93 16.93 16.93
Wheelbase (J) 42.2 42.8 43.58
Frame Reach (K) 15.1 15.69 16.42
Frame Stack (L) 24.02 24.02 24.21
Standover Height (M) 28.07 29.65

Additional information

size

L, M, S, XL
color

Grey
