POLYGON XTRADA 7

POLYGON XTRADA 7

$ 800,00

1 in stock

ADVENTURE STARTS HERE

Created for chasing endless tracks.
“Riding with Xtrada, feels like running as a wolf,” they said. As an XC bike should be, Xtrada is born to run the game with you. Impeccably versatile, effortlessly fast, and obsessively comfortable. The Xtrada is a true cross country mountain bike with a geometry built for speed and stability coupled with tough, trail-ready components. It is perfect for hitting the local single track or an all-day mountain adventure.
SKU: polygon-xtrada-7 Categories: , , Tags: ,

Description

Specification
*Specifications, colors, and product availability are subject to change without prior notice.
    • Frameset
      Frameset

      ALX XC TRAIL

      Fork

      SR SUNTOUR XCR32 AIR LOR 120mm (27.5″ & 29″) TRAVEL

      Frame Color

      TURQOISE SURF – WHITE / GREY BLACK

      Decal Color

      PURPLE / GREY

    • Drivetrain
      Shifter

      SHIMANO DEORE SL-M6100-R, 1×12-SPEED TRIGGER

      Crank

      SHIMANO DEORE FC-M6120 1×12 SP

      Cassette

      12 SPEED, 10-51T

      Rear Derailleur

      SHIMANO DEORE RD-M6100-SGS DIRECT ATTACH

      BB

      SHIMANO 2-PIECE CRANKSET BSA THREADED 73mm

      Chain

      KMC X-12

      Pedal

      PP FLAT PEDAL W/ REFLECTOR

    • Cockpit
      Saddle

      POLYGON, STEEL ø 7mm

      Seatpost

      POLYGON XPERT ALLOY, DXL: 27.2 x 350mm, SEAT CLAMP: 31.8mm W/ QR

      Handlebar

      POLYGON XPERT ALLOY, W: 760mm, BAR BORE: 31.8mm, RISE/DROP: 12mm, BEND: 6degree

      Handlestem

      POLYGON XPERT ALLOY, EXT: 40mm, BAR BORE: 31.8mm, RISE/DROP: 7degree

      Headset

      ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, ZS 44/28.6 | ZS 56/40

    • Wheel & Tire
      Wheel Set

      ALLOY WHEELS

      Wheel Size

      27.5″ / 29″

      Tire

      PERFORMANCE TIRE 27.5″X2.25″ / 29″X2.25″

      Rim

      ALLOY DOUBLE WALL H:23mm W: 30mm 584 32H FOR TYRE 584-68/622-68

    • Brake
      Brake Lever

      SHIMANO BL-MT201 HYDRAULIC DISC BRAKES

      Brake Caliper

      SHIMANO MT-201 HYDRAULIC DISC BRAKES

      Rotor

      SHIMANO SM-RT10 160mm CENTER-LOCK

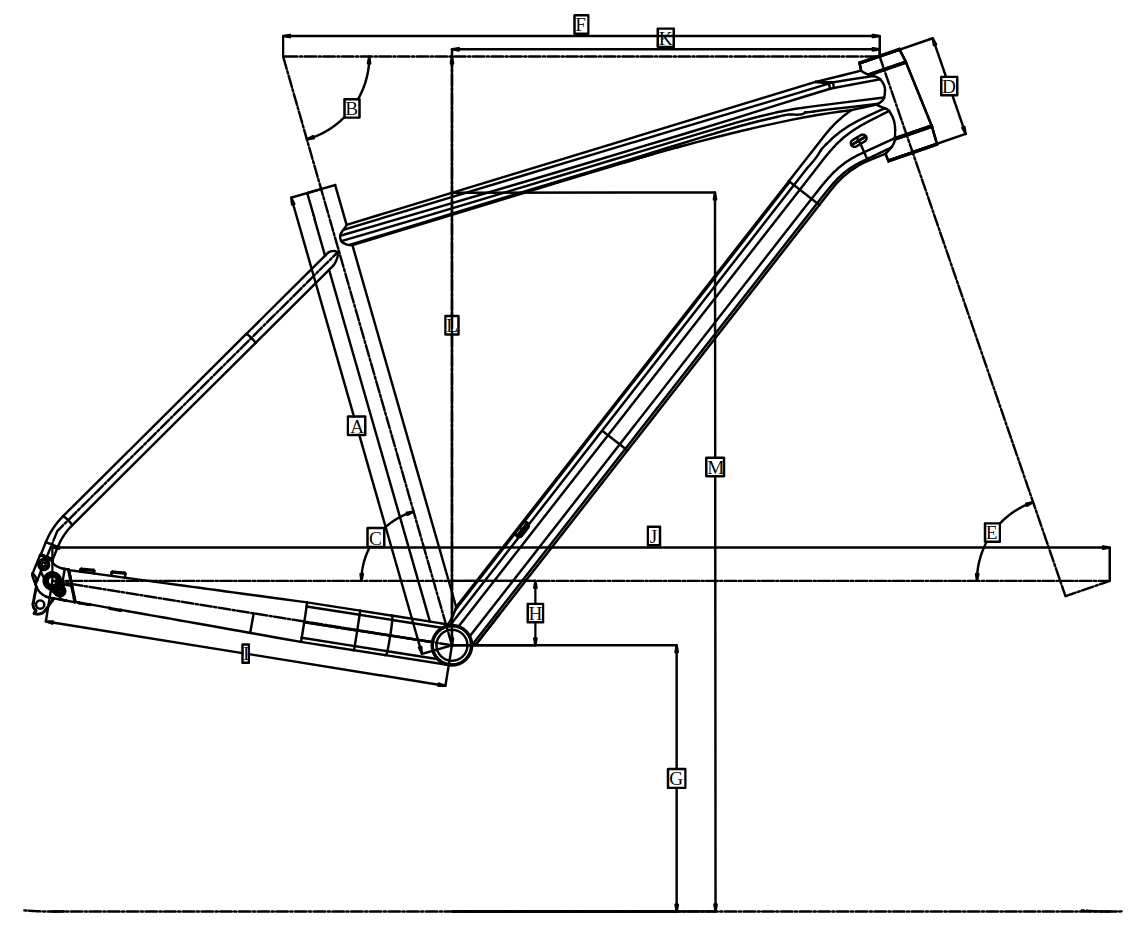

Geometry & Size

Geometry & Size

MM

  S (27.5″) M (27.5″) L (27.5″) M (29″) L (29″) XL (29”)
Height (cm) 152-165 162-175 172-185 162-175 172-185 182-195
Seat Tube Length (A) 385 425 460 425 460 500
Seat Tube Angle (B) 75 75 75 75 75 75
Effective Seat Tube Angle (C) 75 75 75 75 75 75
Head Tube Length (D) 95 100 105 95 100 105
Head Tube Angle (E) 67 67 67 67 67 67
Effective Top Tube (F) 569 590 612 598 619 640
Bb Height (G) 310 310 310 309 309 309
Bb Offset (H) 45 45 45 65 65 65
Chainstay Length (I) 425 425 425 435 435 435
Wheelbase (J) 1106 1128 1150 1147 1169 1191
Frame Reach (K) 410 430 450 430 450 470
Frame Stack (L) 593.8 599.3 603 629.3 633.2 637.8
Standover Height (M) 663 697 726 693 715 751


INCH

  S (27.5″) M (27.5″) L (27.5″) M (29″) L (29″) XL (29”)
Height (cm) 152-165 162-175 172-185 162-175 172-185 182-195
Seat Tube Length (A) 15.16 16.73 18.11 16.73 18.11 19.69
Seat Tube Angle (B) 2.95 2.95 2.95 2.95 2.95 2.95
Effective Seat Tube Angle (C) 2.95 2.95 2.95 2.95 2.95 2.95
Head Tube Length (D) 3.74 3.94 4.13 3.74 3.94 4.13
Head Tube Angle (E) 2.64 2.64 2.64 2.64 2.64 2.64
Effective Top Tube (F) 22.4 23.23 24.09 23.54 24.37 25.2
Bb Height (G) 12.2 12.2 12.2 12.17 12.17 12.17
Bb Offset (H) 1.77 1.77 1.77 2.56 2.56 2.56
Chainstay Length (I) 16.73 16.73 16.73 17.13 17.13 17.13
Wheelbase (J) 43.54 44.41 45.28 45.16 46.02 46.89
Frame Reach (K) 16.14 16.93 17.72 16.93 17.72 18.5
Frame Stack (L) 23.38 23.59 23.74 24.78 24.93 25.11
Standover Height (M) 26.1 27.44 28.58 27.28 28.15 29.57

Additional information

color

White Black, Purple White
