HELIOS A9 Di2 POWERMETER

HELIOS A9 Di2 POWERMETER

$ 7,000,00

In The Relentless Pursuit Of Speed

Designed To Cut Through Air Better
Introducing the all-new Helios A—the pinnacle of aerodynamic engineering and racing performance. Developed over three years of relentless testing and perfected with the elite UCI Continental Team, TSG, the Helios A is built to dominate any race condition.​Refined to be 5.2 seconds faster than its predecessor and lighter than ever, the Helios A is meticulously optimized for speed, agility, and control. Whether battling headwinds or slicing through tight corners, its cutting-edge aerodynamics and balanced stiffness deliver an unmatched ride.​This isn’t just a bike—it’s your competitive edge.
SKU: N/A Categories: ,

Description

*Specifications, colors, and product availability are subject to change without prior notice.
  • Frameset
    Frameset

    ACX PERFORMANCE UCI APPROVED

    Fork

    ACX PERFORMANCE UCI APPROVED

    Frame Color

    VELVET AMBER / CANDY

    Decal Color

    HOLOGRAPHIC SILVER

  • Drivetrain
    Shifter

    SHIMANO DURA-ACE Di2 ST-R9270, 2×12-SPEED

    Crank

    SHIMANO DURA-ACE FC-R9200P 52/36T POWER METER

    Cassette

    SHIMANO DURA-ACE CS-R9200-12 11-34T

    Rear Derailleur

    SHIMANO DURA-ACE Di2 RD-R9250 DIRECT ATTACH

    BB

    TOKEN T47 85.5 FOR 24mm SPINDLE

    Chain

    KMC X12 EPT 12-SPEED

  • Cockpit
    Saddle

    LINC FLUX2, CR-MO ø 7mm

    Seatpost

    CARBON AERO, DxL: AERO 35 x 351mm

    Handlebar

    LINC CARBON, W: 400mm (XXXS, XXS, XS) / 420mm (S, M) / 440mm (L, XL), BB: 31.8mm, R/D: -134.2 mm (XXXS, XXS, XS) / -138.2mm (S, M, L, XL), B/R: 92.5mm (XXXS, XXS, XS) / 89.7mm (S, M, L, XL)

    Handlestem

    CARBON, EXT: 90mm (XXXS) / 100mm (XXS, XS) / 110mm (S, M) / 120mm (L, XL), BB: 31.8mm, R/D: -7.5degree

    Headset

    INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40

  • Wheel & Tire
    Wheel Set

    LINC ALPHA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED

    Wheel Size

    700C

    Tire

    PIRELLI PZERO ROAD TLR 700x28C

    Rim

    F: CARBON 622-22 20H FOR TYRE 622-28/62 DISC TUBELESS READY / R: CARBON 622-22 24H FOR TYRE 622-28/62 DISC TUBELESS READY

    Hub

    F: ALLOY THRU AXLE 12x100mm 20H SEALED BEARINGS CENTER LOCK / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CENTER LOCK

    Spokes

    F: STAINLESS DOUBLE BUTTED NDS:278mm DS:280mm / R: STAINLESS DOUBLE BUTTED NDS:272mm DS:274mm

  • Brake
    Brake Lever

    SHIMANO DURA-ACE ST-R9270

    Brake Caliper

    SHIMANO DURA-ACE HYDRAULIC DISC

    Rotor

    SHIMANO DURA-ACE CL900 F:160mm / R:140mm CENTER LOCK

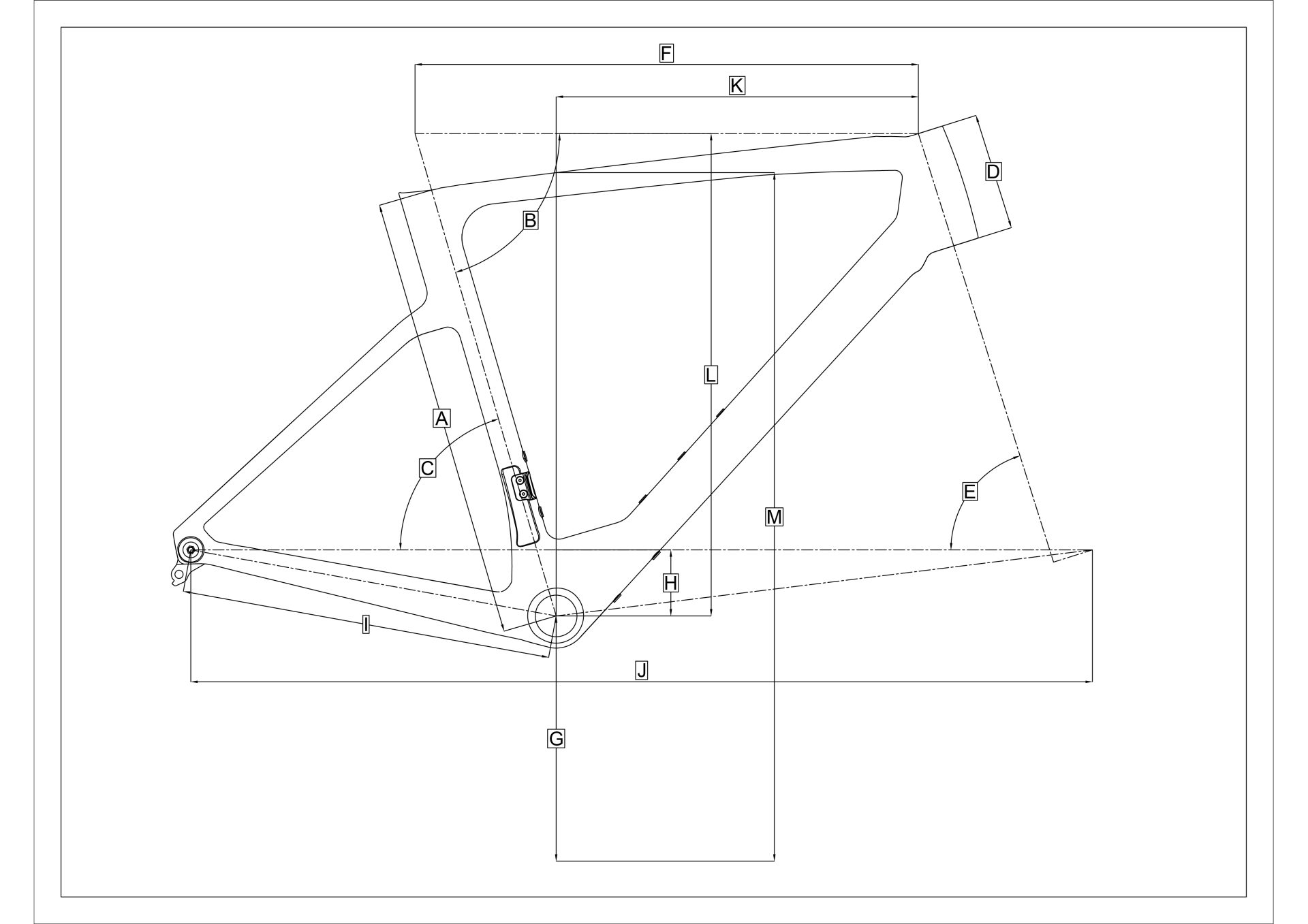

Geometry & Size

MM

  XXXS XXS XS S M L XL
Height (cm) 143-153 151-161 154-164 162-170 168-176 174-181 180-187
Seat Tube Length (A) 395 420 457 489 499 518 536
Seat Tube Angle (B) 75 74.7 74.3 74 73.7 73.3 73
Effective Seat Tube Angle (C) 75 74.7 74.3 74 73.7 73.3 73
Head Tube Length (D) 90 100 110 120 130 150 170
Head Tube Angle (E) 71 71.3 71.5 72.3 72.5 72.8 73
Effective Top Tube (F) 502 513 529 540 556 570 598
Bb Height (G) 266 266 268.5 271 271 272.5 272.5
Bb Offset (H) 78 78 75.5 73 73 71.5 71.5
Chainstay Length (I) 410 410 410 410 410 410 410
Wheelbase (J) 969 976 988 985 996 1005 1024
Frame Reach (K) 370 375 385 390 400 405 420
Frame Stack (L) 493 503 511 523 533 551 571
Standover Height (M) 662 685 720 752 761 780 799

INCH

  XXXS XXS XS S M L XL
Height (cm) 143-153 151-161 154-164 162-170 168-176 174-181 180-187
Seat Tube Length (A) 15.55 16.54 17.99 19.25 19.65 20.39 21.1
Seat Tube Angle (B) 2.95 2.94 2.93 2.91 2.9 2.89 2.87
Effective Seat Tube Angle (C) 2.95 2.94 2.93 2.91 2.9 2.89 2.87
Head Tube Length (D) 3.54 3.94 4.33 4.72 5.12 5.91 6.69
Head Tube Angle (E) 2.8 2.81 2.81 2.85 2.85 2.87 2.87
Effective Top Tube (F) 19.76 20.2 20.83 21.26 21.89 22.44 23.54
Bb Height (G) 10.47 10.47 10.57 10.67 10.67 10.73 10.73
Bb Offset (H) 3.07 3.07 2.97 2.87 2.87 2.81 2.81
Chainstay Length (I) 16.14 16.14 16.14 16.14 16.14 16.14 16.14
Wheelbase (J) 38.15 38.43 38.9 38.78 39.21 39.57 40.31
Frame Reach (K) 14.57 14.76 15.16 15.35 15.75 15.94 16.54
Frame Stack (L) 19.41 19.8 20.12 20.59 20.98 21.69 22.48
Standover Height (M) 26.06 26.97 28.35 29.61 29.96 30.71 31.46

Additional information

size

L, M, S, XL, ALL SIZE, XS, XXS, XXXS
color

Candy, Velvet Ember
