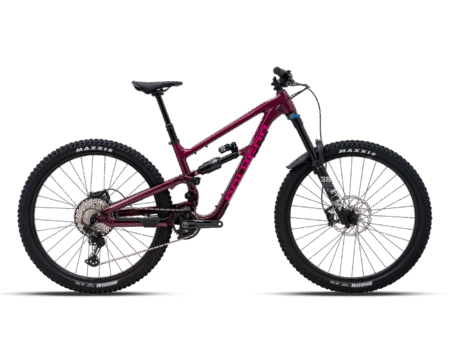

COLLOSUS N9

COLLOSUS N9

$ 3,200,00

RELEASE THE BEAST

Ride faster, track better, leave them in the dust
We’re excited to unveil the latest evolution of the Collosus N—built to take your trail experience to the next level. At first glance, it might look familiar, but rest assured, this is a completely redefined version that has been meticulously engineered for even more performance and fun on the trails. After two full seasons of collaboration with the Polygon Factory Racing team and extensive testing across the EDR World Cup circuit, we’ve fine-tuned every detail. Through multiple prototypes and real-world testing, the new Collosus N is the result of a relentless pursuit to make the best even better.​
SKU: N/A Categories: , ,

Description

*Specifications, colors, and product availability are subject to change without prior notice.
    • Frameset
      Frameset

      ALX ENDURO 170mm TRAVEL

      Fork

      FOX 38 FLOAT PERFORMANCE, AIR SPRING, 170mm TRAVEL, OFFSET: 44mm, W/ FENDER

      Rear Shock

      FOX FLOAT X2, AIR SPRING, 2 POSITION ADJUST, HSC-LSC, HSR-LSR, E2E: 230x65mm

      Frame Color

      BURGUNDY RED

      Decal Color

      MAGENTA PINK

    • Drivetrain
      Shifter

      SHIMANO XT SL-M8100-R, 1×12-SPEED TRIGGER

      Crank

      SHIMANO DEORE XT FC-M8120, 32T

      Cassette

      SHIMANO SLX CS-M7100, 10-51T

      Rear Derailleur

      SHIMANO XT RD-M8100-SGS

      BB

      SHIMANO BB-MT501 BSA THREADED

      Chain

      KMC X-12

      Pedal

      ALLOY FLAT W/ REPLACEABLE PIN

    • Cockpit
      Saddle

      LINC XTENT, CR-MO ø7mm

      Seatpost

      TRANZ X JD-YSP39KL 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 34.9 x 456mm (S, M) / 495mm (L, XL)

      Handlebar

      RACE FACE CHESTER 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree

      Handlestem

      RACE FACE AEFFECT R 35, EXT: 40mm, BB: 35mm, R/D: 0degree

      Headset

      FSA NO.57E W/ SEALED BEARING, ZS 44/28.6 | ZS 56/40

    • Wheel & Tire
      Wheel Set

      POLYGON MT6 TUBELESS READY

      Wheel Size

      29″

      Tire

      MAXXIS ASSEGAI 29″x2.5″

      Rim

      F: ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY / R: ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY

      Hub

      F: SHIMANO XT HB-M8110-B BOOST 15x110mm 32H CL / R: SHIMANO DEORE XT FH-M8110-B BOOST 12x148mm 32H CL FOR MICRO SPLINE

      Spokes

      F: 14G STAINLESS NDS:290mm DS:292mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE

    • Brake
      Brake Lever

      SHIMANO XT BL-M8100

      Brake Caliper

      SHIMANO XT HYDRAULIC DISC

      Rotor

      SHIMANO SM-RT64 203mm

Geometry & Size

Geometry & Size

MM

  S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 390 400 415 430
Seat Tube Angle (B) 70 70 70 70
Effective Seat Tube Angle (C) 77 77 77 77
Head Tube Length (D) 100 105 110 120
Head Tube Angle (E) 63.5 63.5 63.5 63.5
Effective Top Tube (F) 583.6 604.6 626.4 647.7
Bb Height (G) 353 353 353 353
Bb Offset (H) 27 27 27 27
Chainstay Length (I) 435 435 435 435
Wheelbase (J) 1221.7 1244 1266.2 1290.7
Frame Reach (K) 440 460 480 500
Frame Stack (L) 625.5 630 634.5 643.4
Standover Height (M) 710 716 717 720




INCH

  S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 15.35 15.75 16.34 16.93
Seat Tube Angle (B) 2.76 2.76 2.76 2.76
Effective Seat Tube Angle (C) 3.03 3.03 3.03 3.03
Head Tube Length (D) 3.94 4.13 4.33 4.72
Head Tube Angle (E) 2.5 2.5 2.5 2.5
Effective Top Tube (F) 22.98 23.8 24.66 25.5
Bb Height (G) 13.9 13.9 13.9 13.9
Bb Offset (H) 1.06 1.06 1.06 1.06
Chainstay Length (I) 17.13 17.13 17.13 17.13
Wheelbase (J) 48.1 48.98 49.85 50.81
Frame Reach (K) 17.32 18.11 18.9 19.69
Frame Stack (L) 24.63 24.8 24.98 25.33
Standover Height (M) 27.95 28.19 28.23 28.35






Additional information

color

Burgundy Red
size

L, M, S, XL

Reviews

There are no reviews yet.

Be the first to review “COLLOSUS N9”

Your email address will not be published. Required fields are marked *

Related products

  • CASCADE 3
    Select options This product has multiple variants. The options may be chosen on the product page

    CASCADE 3

    $ 375,00
  • XTRADA 5
    Select options This product has multiple variants. The options may be chosen on the product page

    XTRADA 5

    $ 600,00

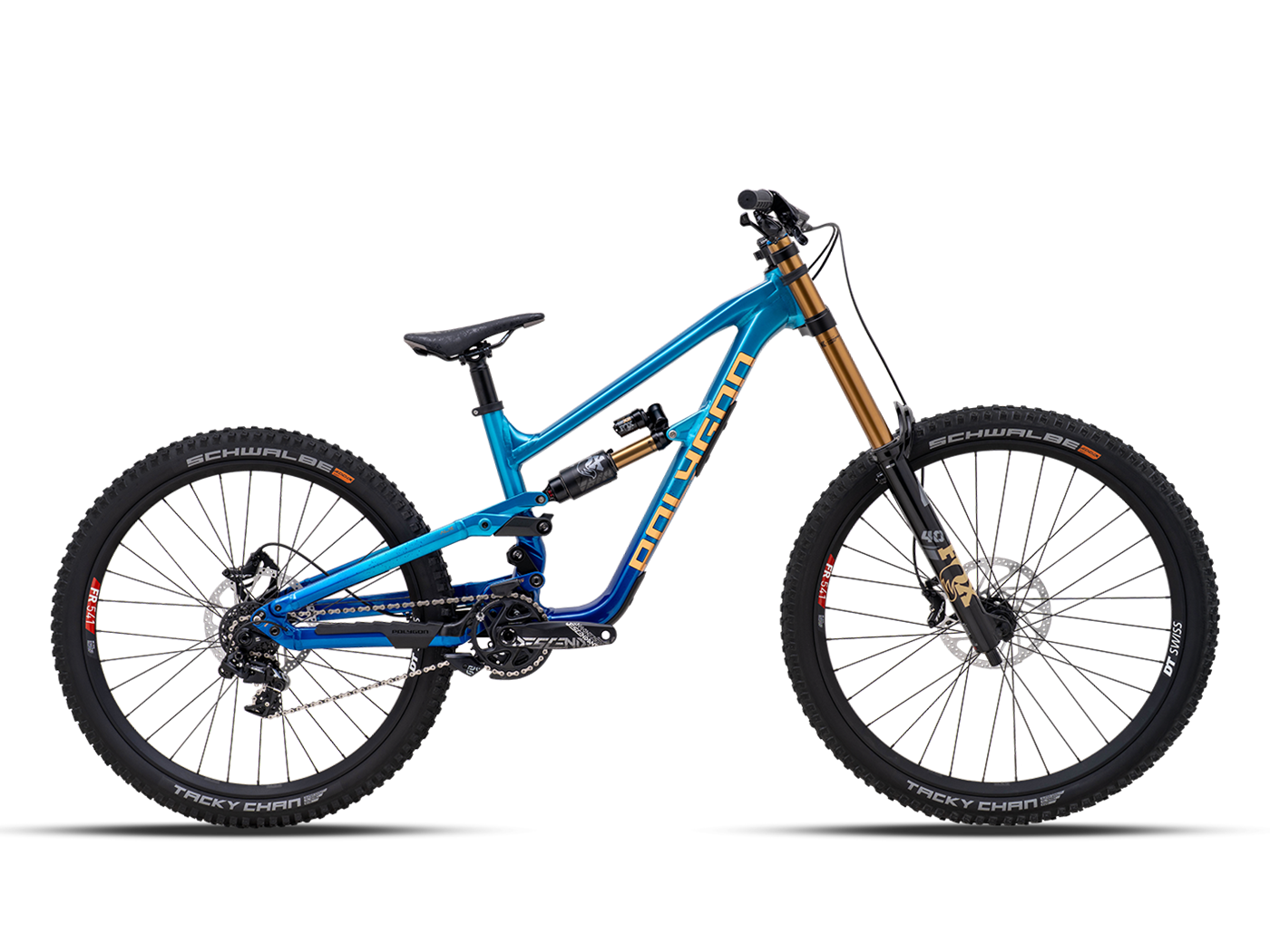

  • COLLOSUS DH9
