COLLOSUS N8XE

COLLOSUS N8XE

$ 5,500,00

FUN REDEFINED

Ride further, faster, fun like never before​
Comes from the bloodline of a champion Collosus N, we give you another perspective to have more fun and tame the trails with the combination of our proven suspension platform; the IFS System (Independent Floating Suspension System), and the powerful 85 NM support, and Shimanos free shift that enables seamless shifting without the need to pedal; ensuring a controlled flow as you navigate descents and corners. Welcome to where climbs transform into fun and, of course, your descents triple.​
SKU: N/A Categories: ,

Description

*Specifications, colors, and product availability are subject to change without prior notice.
  • Frameset
    Frameset

    ALX AM/ENDURO 160mm TRAVEL

    Fork

    FOX 38 FLOAT FACTORY

    Rear Shock

    FOX FLOAT X2 FACTORY

    Frame Color

    METALLIC GREEN

    Decal Color

    BROWN

  • Drivetrain
    Shifter

    SHIMANO XT Di2 SW-M8150, 1×12-SPEED I-SPEC EV

    Crank

    SHIMANO SM-CRE80-12-B 34T

    Cassette

    SHIMANO XT CS-M8100 10-51T MICROSPLINE

    Rear Derailleur

    SHIMANO XT Di2 RD-M8150

    Chain

    KMC E12 FOR 12-SPEED

    Pedal

    ALLOY FLAT W/ REPLACEABLE PIN

  • Cockpit
    Saddle

    XTEND

    Seatpost

    FOX TRANSFER FACTORY SERIES 150mm (S, M) / 175mm (L, XL) TRAVEL, DxL: 30.9x418mm (S, M) / 475mm (L, XL)

    Handlebar

    RACE FACE AFFECT R 35, W: 780mm, BB: 35mm, R/D: 20mm, B: 8degree

    Handlestem

    RACE FACE AFFECT R 35, EXT:40mm, BB: 35mm, R/D: 0mm

    Headset

    FSA NO.57E W/ SEALED BEARING

  • Wheel & Tire
    Wheel Set

    XL2 TUBELESS READY

    Tire

    SCHWALBE MAGIC MARY EVO 29″x2.60″ 622×65 SUPER GRAVITY TLE ADDIX SOFT

    Rim

    ALLOY DOUBLE WALL FV H:18mm 622×36 32H FOR TYRE 622-54/76 W/ TUBELESS TAPE

    Hub

    F: SHIMANO TC500 15x110mm 32H CL / R: SHIMANO TC500 12x148mm 32H CL FOR MICROSPLINE

    Spokes

    F: STAINLESS 14G NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE / R: STAINLESS 14G NDS:296mm DS:294mm W/ 12mm BRASS NIPPLE

  • Brake
    Brake Lever

    SHIMANO XT BL-M8100

    Brake Caliper

    SHIMANO XT M8120 HYDRAULIC DISC

    Rotor

    F: SHIMANO RT-MT800 203 CL / R: SHIMANO RT-EM810 203 CL

  • Electric Parts
    Motor

    SHIMANO DU-EP801 MID MOTOR 25kph / 20mph

    Sensor

    SHIMANO EW-SS301 W/ 760mm CABLE

    Battery

    SHIMANO BT-EN806 FOR DOWN TUBE INTEGRATED – 630Wh (36V, 14Ah)

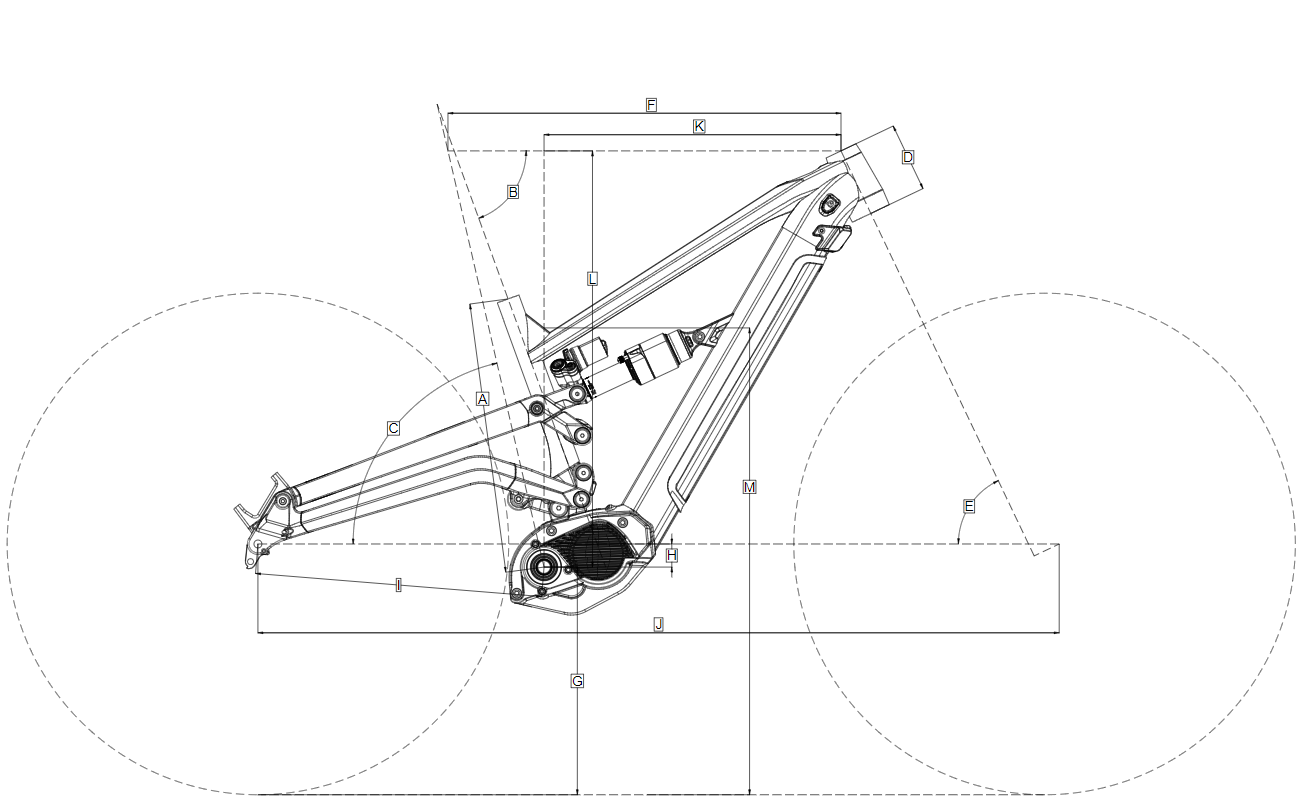

Geometry & Size

MM

  S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 400 410 420 430
Seat Tube Angle (B) 70 70 70 70
Effective Seat Tube Angle (C) 77 77 77 77
Head Tube Length (D) 100 105 110 120
Head Tube Angle (E) 64.5 64.5 64.5 64.5
Effective Top Tube (F) 594.56 615.6 636.65 658.73
Bb Height (G) 345 345 345 345
Bb Offset (H) 35 35 35 35
Chainstay Length (I) 435 435 435 435
Wheelbase (J) 1212.09 1234.25 1256.4 1280.7
Frame Reach (K) 450 470 490 510
Frame Stack (L) 626.16 630.68 635.19 644.22
Standover Height (M) 710 710 710 710

INCH

  S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 15.75 16.14 16.54 16.93
Seat Tube Angle (B) 2.76 2.76 2.76 2.76
Effective Seat Tube Angle (C) 3.03 3.03 3.03 3.03
Head Tube Length (D) 3.94 4.13 4.33 4.72
Head Tube Angle (E) 2.54 2.54 2.54 2.54
Effective Top Tube (F) 23.41 24.24 25.06 25.93
Bb Height (G) 13.58 13.58 13.58 13.58
Bb Offset (H) 1.38 1.38 1.38 1.38
Chainstay Length (I) 17.13 17.13 17.13 17.13
Wheelbase (J) 47.72 48.59 49.46 50.42
Frame Reach (K) 17.72 18.5 19.29 20.08
Frame Stack (L) 24.65 24.83 25.01 25.36
Standover Height (M) 27.95 27.95 27.95 27.95

Additional information

size

L, M, S, XL
color

Green
