COLLOSUS DH9

COLLOSUS DH9

$ 5,000,00

Downhill Demolition

The Return Of Dh Era.
You can never truly leave DH! We are back making waves in the biking world once again with the long-awaited release of our newest addition to the DH scene. Since the 2018 XQUARONE DH bike, we’ve been crafting and perfecting our latest offering, and now, we’re thrilled to unveil the result of years of development, the Collosus DH.​​​The Collosus DH was born from our Collosus N enduro bike which was tested extensively by the PFR team at EDR for two seasons. We realized the demand for something bigger, bolder, and more suited to the rigors of racing and aggressive riding. The Collosus DH has been meticulously designed with versatility in mind. With 4 different geometry configurations, riders can tailor their experience, seamlessly transitioning from playful park rides to dominating the downhill course.​​
SKU: N/A Categories: ,

Description

*Specifications, colors, and product availability are subject to change without prior notice.
  • Frameset
    Frameset

    ALX DOWNHILL 200mm TRAVEL

    Fork

    FOX 40 FACTORY SERIES KASHIMA COAT, AIR SPRING, TRAVEL:203mm, GRIP 2, HSC, LSC, HSR, LSR

    Rear Shock

    FOX FLOAT X2 FACTORY SERIES KASHIMA COAT, E2E: METRIC 250x75mm

    Frame Color

    BLUE SHAPIRE

    Decal Color

    KHASIMA GLOSS

  • Drivetrain
    Shifter

    SRAM X01 DH, 1×7-SPEED TRIGGER

    Crank

    SRAM DESCENDANT DH, 34T

    Cassette

    SRAM PG720, 11-25T

    Rear Derailleur

    SRAM X01 DH

    BB

    SRAM DUB BSA 83mm

    Chain

    KMC X11

    Pedal

    ALLOY W/ REPLACEABLE PIN

  • Cockpit
    Saddle

    LINC XTENT

    Seatpost

    POLYGON EXPERT, DxL: 34,9 X 320mm

    Handlebar

    RACEFACE ATLAS 35, W: 820mm, BB: 35mm, R/D: 35mm, B: 8degree

    Handlestem

    RACEFACE ATLAS 35 DIRECT MOUNT, EXT: 50mm, BB: 35mm, R/D: 0degree

    Headset

    FSA NO.55/57-1, ZS 56/28.6 | ZS 56/30

  • Wheel & Tire
    Wheel Set

    DT-SWISS

    Wheel Size

    29″/27.5″

    Tire

    SCHWALBE TACKY CHAN ADDIX SOFT FRONT: 29″x2.4″ (622-62) ; REAR: 27.5″x2.4″ (584-62)

    Rim

    F: DT-SWISS FR-541 622MM(29), 32H / R: DT-SWISS FR-541 584MM(27.5), 32H

    Hub

    F: DT-SWISS 240 THRU AXLE 20x110mm 32H 6BOLT / R: DT-SWISS 240 THRU AXLE 12x157mm 32H 6BOLT

    Spokes

    F: J-BEND NDS:288mm DS:292mm W/ 14Gx14MM BRASS NIPPLE / R: J-BEND NDS:272mm DS:272mm W/ 14Gx14MM BRASS NIPPLE

  • Brake
    Brake Lever

    TRP DH-R EVO

    Brake Caliper

    TRP DH-R EVO HYDRAULIC DISC

    Rotor

    TRP RS01E 203mm, 6BOLT

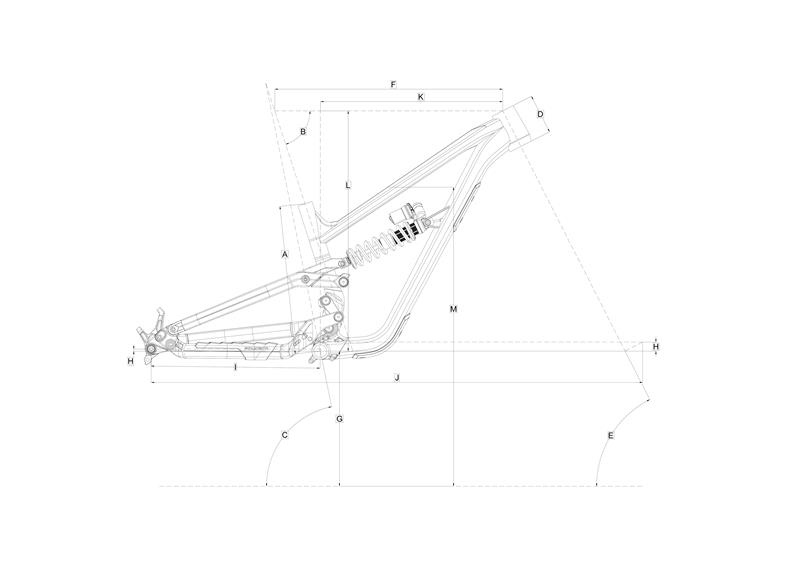

Geometry & Size

HIGH

  S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 390 390 390 390
Seat Tube Angle (B) 72 72 72 72
Effective Seat Tube Angle (C) 78.5 78.5 78.5 78.5
Head Tube Length (D) 105 105 105 105
Head Tube Angle (E) 63 63 63 63
Effective Top Tube (F) 557 580 600 622
Bb Height (G) 356 356 356 356
Bb Offset (H) 24 24 24 24
Chainstay Length (I) 445 445 445 445
Wheelbase (J) 1250 1273 1293 1315
Frame Reach (K) 437 460 480 502
Frame Stack (L) 632 632 632 632
Standover Height (M) 817 817 817 817

MM

  S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 390 390 390 390
Seat Tube Angle (B) 72 72 72 72
Effective Seat Tube Angle (C) 78.5 78.5 78.5 78.5
Head Tube Length (D) 105 105 105 105
Head Tube Angle (E) 63 63 63 63
Effective Top Tube (F) 557 580 600 622
Bb Height (G) 356 356 356 356
Bb Offset (H) 24 24 24 24
Chainstay Length (I) 445 445 445 445
Wheelbase (J) 1250 1273 1293 1315
Frame Reach (K) 437 460 480 502
Frame Stack (L) 632 632 632 632
Standover Height (M) 817 817 817 817

INCH

  S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 15.35 15.35 15.35 15.35
Seat Tube Angle (B) 2.83 2.83 2.83 2.83
Effective Seat Tube Angle (C) 3.09 3.09 3.09 3.09
Head Tube Length (D) 4.13 4.13 4.13 4.13
Head Tube Angle (E) 2.48 2.48 2.48 2.48
Effective Top Tube (F) 21.93 22.83 23.62 24.49
Bb Height (G) 14.02 14.02 14.02 14.02
Bb Offset (H) 0.94 0.94 0.94 0.94
Chainstay Length (I) 17.52 17.52 17.52 17.52
Wheelbase (J) 49.21 50.12 50.91 51.77
Frame Reach (K) 17.2 18.11 18.9 19.76
Frame Stack (L) 24.88 24.88 24.88 24.88
Standover Height (M) 32.17 32.17 32.17 32.17

LOW

  S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 390 390 390 390
Seat Tube Angle (B) 71.6 71.6 71.6 71.6
Effective Seat Tube Angle (C) 78.1 78.1 78.1 78.1
Head Tube Length (D) 105 105 105 105
Head Tube Angle (E) 62.6 62.6 62.6 62.6
Effective Top Tube (F) 558 581 601 623
Bb Height (G) 350 350 350 350
Bb Offset (H) 30 30 30 30
Chainstay Length (I) 446 446 446 446
Wheelbase (J) 1251 1274 1294 1316
Frame Reach (K) 433 456 476 498
Frame Stack (L) 635 635 635 636
Standover Height (M) 813 813 813 813

MM

  S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 390 390 390 390
Seat Tube Angle (B) 71.6 71.6 71.6 71.6
Effective Seat Tube Angle (C) 78.1 78.1 78.1 78.1
Head Tube Length (D) 105 105 105 105
Head Tube Angle (E) 62.6 62.6 62.6 62.6
Effective Top Tube (F) 558 581 601 623
Bb Height (G) 350 350 350 350
Bb Offset (H) 30 30 30 30
Chainstay Length (I) 446 446 446 446
Wheelbase (J) 1251 1274 1294 1316
Frame Reach (K) 433 456 476 498
Frame Stack (L) 635 635 635 636
Standover Height (M) 813 813 813 813

INCH

  S M L XL
Height (cm) 155-165 165-175 175-185 185-195
Seat Tube Length (A) 15.35 15.35 15.35 15.35
Seat Tube Angle (B) 2.82 2.82 2.82 2.82
Effective Seat Tube Angle (C) 3.07 3.07 3.07 3.07
Head Tube Length (D) 4.13 4.13 4.13 4.13
Head Tube Angle (E) 2.46 2.46 2.46 2.46
Effective Top Tube (F) 21.97 22.87 23.66 24.53
Bb Height (G) 13.78 13.78 13.78 13.78
Bb Offset (H) 1.18 1.18 1.18 1.18
Chainstay Length (I) 17.56 17.56 17.56 17.56
Wheelbase (J) 49.25 50.16 50.94 51.81
Frame Reach (K) 17.05 17.95 18.74 19.61
Frame Stack (L) 25 25 25 25.04
Standover Height (M) 32.01 32.01 32.01
